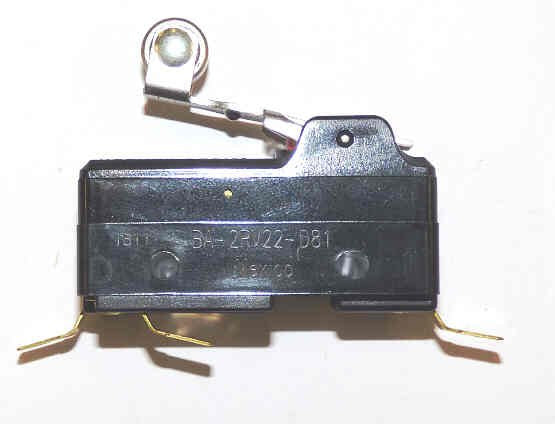

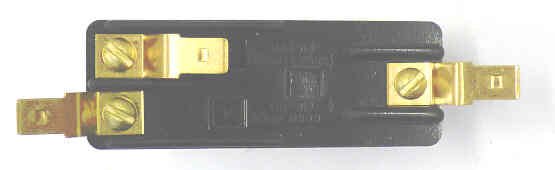

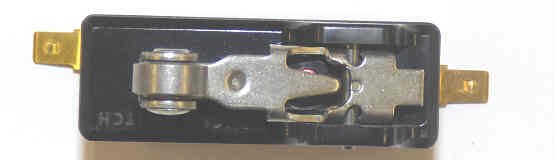

SWITCH, MICRO, SPDT, 20 AMP, ROLLER ACTUATED DC-68 OPERATORS DOVER # 9791577
SWITCH, MICRO, SPDT, 20 AMP, ROLLER ACTUATED DC-68 OPERATORS DOVER # 9791577
Regular price
$29.25
Regular price
Sale price
$29.25
Unit price
per
Type : ELEVATOR
SKU : D-D206
Tags : Door Operator Parts, Interlock & Door Operator Parts,
Collections : Elevator Parts Dover & Tke,
Availability : In Stock
Shipping will be calculated after checkout. A team member will contact you with a shipping quote before fulfillment.
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!
SWITCH, MICRO, SPDT, 20 AMP, ROLLER ACTUATED DC-68 OPERATORS
DOVER # 9791577 69157
Large Snap Switch, BA Series, Type of Actuator Roller Lever, Actuator Length 1.05 In., Contact Form SPDT, Current Rating 20A, Voltage Rating 125/250/480VAC, Terminal Type Screw, Operating Force 6 oz., Max. Pretravel 0.25 In., Release Force 1.50 oz., Differential Travel 0.045 In., Over Travel 0.03 In., Length 1.94 In., Height 0.95 In., Depth 0.063 In., Mounting Dimension 1 In. Centers, Operating Temp 9791577, 69157 Switch assembly for DC-68 Operators
DOVER # 9791577 69157
Large Snap Switch, BA Series, Type of Actuator Roller Lever, Actuator Length 1.05 In., Contact Form SPDT, Current Rating 20A, Voltage Rating 125/250/480VAC, Terminal Type Screw, Operating Force 6 oz., Max. Pretravel 0.25 In., Release Force 1.50 oz., Differential Travel 0.045 In., Over Travel 0.03 In., Length 1.94 In., Height 0.95 In., Depth 0.063 In., Mounting Dimension 1 In. Centers, Operating Temp 9791577, 69157 Switch assembly for DC-68 Operators
