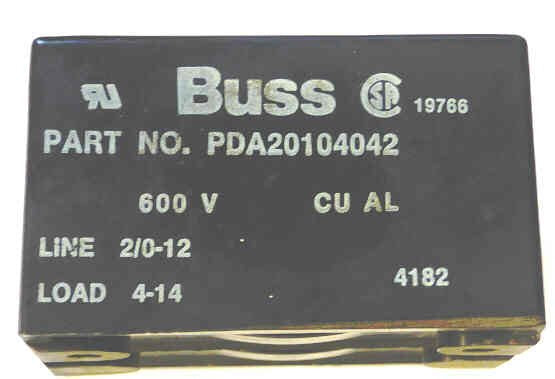

BLOCK, TERMINAL, POWER DIST , 2 POLE, 600 VAC BUSSMAN # 16220-2 PDA20104042
BLOCK, TERMINAL, POWER DIST , 2 POLE, 600 VAC BUSSMAN # 16220-2 PDA20104042
Regular price
$42.00
Regular price
Sale price
$42.00
Unit price
per
Type : ELEVATOR
SKU : MEP-TB101
Tags : Terminal Blocks And Strips,
Collections : Mep Fuses & Electrical Supplies,
Availability : In Stock
Shipping will be calculated after checkout. A team member will contact you with a shipping quote before fulfillment.
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!
BLOCK, TERMINAL, POWER DISTRIBUTION, 2 POLE, 600 VAC
BUSSMAN # 16220-2 PDA20104042
16220-2 Cooper Bussmann BUSS BLCK WAS PDA20104042

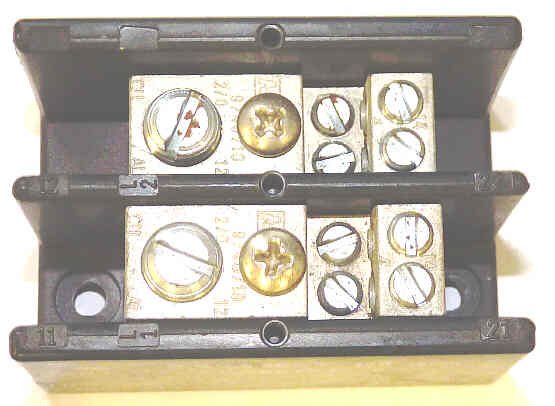

Screw connection line side, (4) 0.250 quick-connect load side power terminal block
Volts
600Vac/dc
Amps
Up to 1520A
SCCR
10kA per UL 508A table SB4.1
Agency Information
CE, Guide XCFR2, UL E221592 General Industrial Class per UL 1059; CSA Class 6228-01, File 53787
Wire Range
See Data Sheet
Flammability Rating
UL 94V0.
Poles
Series 160: 2-, 3- or 4-poles Series 162, 163 and 165: 1-, 2- or 3-poles
BUSSMAN # 16220-2 PDA20104042
16220-2 Cooper Bussmann BUSS BLCK WAS PDA20104042
Screw connection line side, (4) 0.250 quick-connect load side power terminal block
Volts
600Vac/dc
Amps
Up to 1520A
SCCR
10kA per UL 508A table SB4.1
Agency Information
CE, Guide XCFR2, UL E221592 General Industrial Class per UL 1059; CSA Class 6228-01, File 53787
Wire Range
See Data Sheet
Flammability Rating
UL 94V0.
Poles
Series 160: 2-, 3- or 4-poles Series 162, 163 and 165: 1-, 2- or 3-poles
